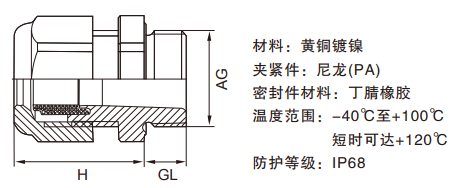

型号 普通pg制螺纹 | PG7-M | PG9-M | PG11-M | PG13.5-M | PG16-M | PG21-M | PG29-M | PG36-M | PG42-M | PG48-M |
| 卡口范围mm | 3-6 | 4-8 | 6-10 | 6-10 | 8-12 | 13-18 | 18-25 | 25-32 | 32-38 | 37-44 |
| AG外径mm | 12.5 | 15.2 | 18.6 | 20.4 | 22.5 | 28.3 | 37.0 | 47.0 | 54.0 | 59.3 |
| GL mm | 6 | 7 | 8 | 8 | 8 | 11 | 11 | 13 | 14 | 14 |
| Hmm | 19 | 20 | 21 | 22 | 23 | 25 | 29 | 35 | 37 | 38 |
型号 普通公制制螺纹 | M12×1.5-M | M14×1.5-M | M16×1.5-M | M18×1.5-M | M20×1.5-M | M22×1.5-M | M24×1.5-M | M27×2-M | ||
| 卡口范围mm | 3-6 | 3-6 | 4-8 | 6-10 | 6-10 | 8-12 | 10-14 | 13-18 | ||
| AG外径mm | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | ||
| GL mm | 6 | 6 | 7 | 8 | 8 | 8 | 10 | 11 | ||
| Hmm | 19 | 19 | 20 | 21 | 22 | 22 | 23 | 25 | ||
型号 普通公制制螺纹 | M30×2-M | M33×2-M | M36×2-M | M42×2-M | M48×2-M | M54×2-M | M60×2-M | M64×2-M | ||
| 卡口范围mm | 13-18 | 15-22 | 18-25 | 22-28 | 25-32 | 32-38 | 37-44 | 37-44 | ||
| AG外径mm | 30 | 33 | 36 | 42 | 48 | 54 | 60 | 64 | ||
| GL mm | 11 | 11 | 11 | 12 | 13 | 14 | 14 | 14 | ||
| Hmm | 25 | 28 | 29 | 29 | 35 | 37 | 38 | 38 | ||
| 型号 | 订货号 |
| PG7-M | 5014.021 |
| PG9-M | 5014.022 |
| PG11-M | 5014.023 |
| PG13.5-M | 5014.024 |
| PG16-M | 5014.025 |
| PG21-M | 5014.026 |
| PG29-M | 5014.027 |
| PG36-M | 5014.028 |
| PG42-M | 5014.029 |
| PG48-M | 5014.030 |
| M12×1.5-M | 5014.046 |
| M14×1.5-M | 5014.047 |
| M16×1.5-M | 5014.048 |
| M18×1.5-M | 5014.049 |
| M20×1.5-M | 5014.050 |
| M22×1.5-M | 5014.051 |
| M24×1.5-M | 5014.052 |
| M27×2-M | 5014.053 |
| M30×2-M | 5014.054 |
| M33×2-M | 5014.055 |
| M36×2-M | 5014.056 |
| M42×2-M | 5014.057 |
| M48×2-M | 5014.058 |
| M54×2-M | 5014.059 |
| M60×2-M | 5014.060 |
| M64×2-M | 5014.061 |
