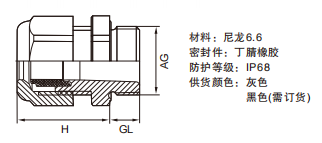

型号 普通pg制螺纹 | PG7 | PG9 | PG11 | PG13.5 | PG16 | PG21 | PG29 | PG36 | PG42 | PG48 |
| 卡口范围mm | 3-6.5 | 4-8 | 5-10 | 6-12 | 10-14 | 13-18 | 18-25 | 22-32 | 32-38 | 37-44 |
| AG外径mm | 12.5 | 15.2 | 18.6 | 20.4 | 22.5 | 28.3 | 37.0 | 47.0 | 54.0 | 59.3 |
| GL mm | 8 | 8 | 8 | 9 | 10 | 11 | 11 | 13 | 13 | 14 |
| Hmm | 20 | 22 | 24 | 27 | 28 | 30 | 38 | 45 | 47 | 47 |
型号 普通公制制螺纹 | M12×1.5 | M14×1.5 | M16×1.5 | M18×1.5 | M20×1.5 | M22×1.5 | M24×1.5 | |||
| 卡口范围mm | 3-6.5 | 3-6 | 4-8 | 6-10 | 6-12 | 10-14 | 10-14 | |||
| AG外径mm | 12 | 14 | 16 | 18 | 20 | 22 | 24 | |||
| GL mm | 8 | 6 | 8 | 8 | 9 | 9 | 10 | |||
| Hmm | 22 | 19 | 26 | 21 | 28 | 22 | 23 | |||
型号 普通公制制螺纹 | M25×1.5 | M27×1.5 | M30×1.5 | M32×1.5 | M36×1.5 | M40×1.5 | M50×1.5 | M63×1.5 | ||
| 卡口范围mm | 13-18 | 13-18 | 13-18 | 16-21 | 18-25 | 22-32 | 32-38 | 37-44 | ||
| AG外径mm | 25 | 27 | 30 | 32 | 36 | 40 | 50 | 63 | ||
| GL mm | 10 | 11 | 11 | 11 | 11 | 14 | 14 | 14 | ||
| Hmm | 35 | 25 | 25 | 34 | 29 | 42 | 49 | 50 | ||
| 型号 | 订货号（灰白色） | 订货号（黑色） |
| PG7 | 5014.001 | 9014.011 |
| PG9 | 5014.002 | 9014.012 |
| PG11 | 5014.003 | 9014.013 |
| PG13.5 | 5014.004 | 9014.014 |
| PG16 | 5014.005 | 9014.015 |
| PG21 | 5014.006 | 9014.016 |
| PG29 | 5014.007 | 9014.017 |
| PG36 | 5014.008 | 9014.018 |
| PG42 | 5014.009 | 9014.019 |
| PG48 | 5014.010 | 9014.020 |
| M12×1.5 | 5014.031 | 9014.036 |
| M14×1.5 | 5014.032 | 9014.044 |
| M16×1.5 | 5014.033 | 9014.037 |
| M18×1.5 | 5014.034 | 9014.045 |
| M20×1.5 | 5014.035 | 9014.038 |
| M22×1.5 | 5014.036 | 9014.046 |
| M24×1.5 | 5014.037 | 9014.047 |
| M25×1.5 | 5014.038 | 9014.039 |
| M27×1.5 | 5014.039 | 9014.048 |
| M30×1.5 | 5014.040 | 9014.049 |
| M32×1.5 | 5014.041 | 9014.040 |
| M36×1.5 | 5014.042 | 9014.050 |
| M40×1.5 | 5014.043 | 9014.041 |
| M50×1.5 | 5014.044 | 9014.042 |
| M63×1.5 | 5014.045 | 9014.043 |
